MUSICbook DSPamp AQ10U    12-CHANNEL SOUND PROCESSOR

Signal processor with power output,Support internal HD 5.0 Bluetooth, barrier free control, effective distance up to 10 meters,i-sotec's unique audio circuit for perfect interpretation of the best sound field effects,The transmission quality of the RCA analog signal, the original preservation retains a lot of details of the original music,Over-current, over-temperature and under-voltage protections with self-reset feature ,Automatic impedance matching of the original vehicle speake

Frequency response

• 20Hz - 20KHz

Inputs

• 8 high-level signal inputs

• 2-channel RCA signal

• Optical fiber digital signal input

• Bluetooth signal input

Outputs

• 12-channel RCA output

• 4×50W+4×80W+2×160W (Max power)

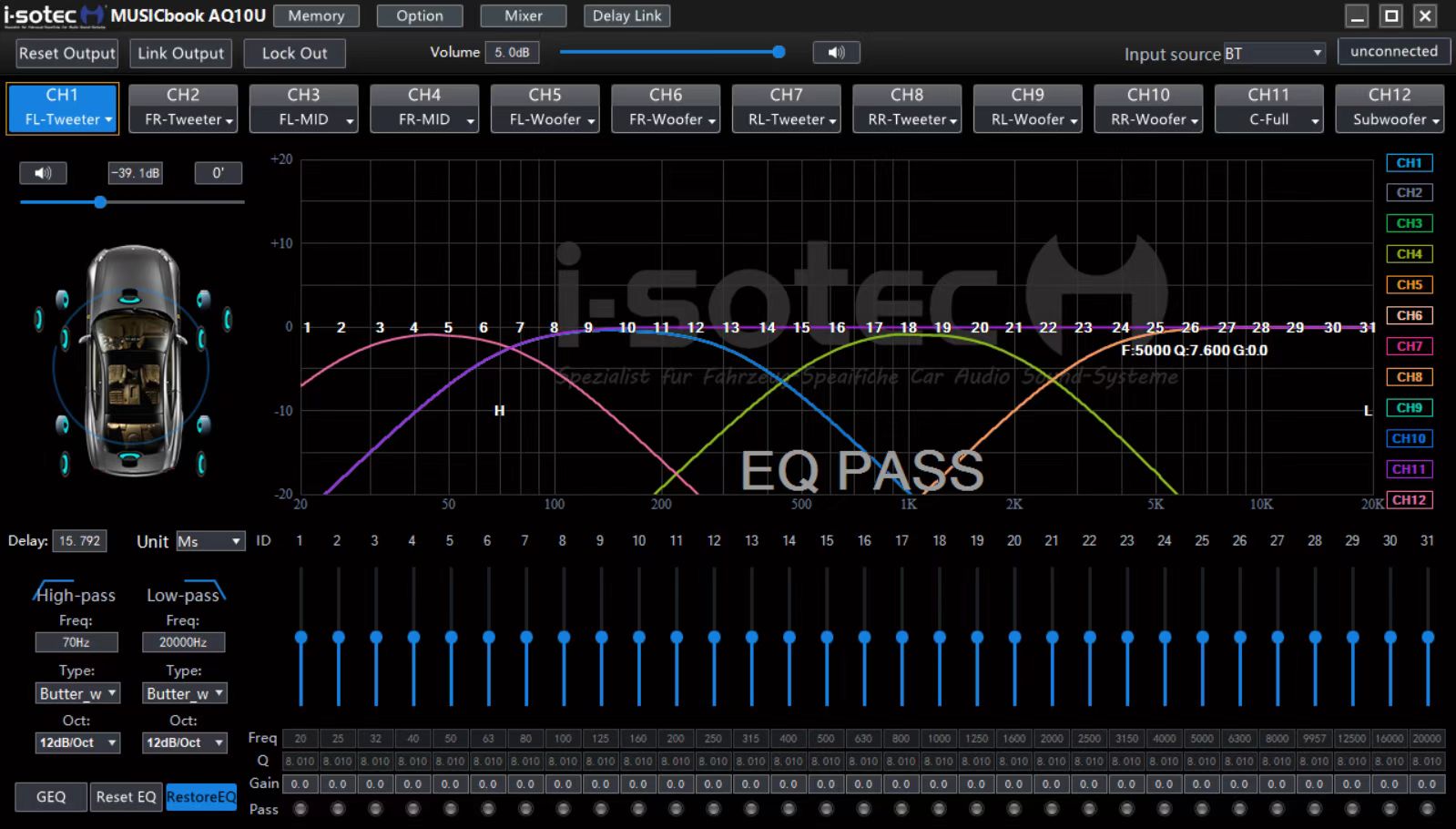

Sound & Tuning

• Standard control panel (sold separately)

• 31 Bands parametric EQ

• Hi-pass / Low-pass / Bandpass Crossover

• Time delay up to 20 ms per channel

• Input/output frequency summing

• USB music playback




Dimension

• 206 x 198 x 51 mm
