Product Detail
MUSICbook H8    8-channel audio processor
Share to：

MUSICbook H8    8-channel audio processor

Product details
high-level signal inputs 6ch Low-level signal inputs 6ch
high-level signal outputs N/A LOW-level signal outputs 8ch
Coaxial digital signal inputs 1 Group Optical  signal inputs 1 Group
EQ 31 Bands parametric EQ Dimension(L×W×H） 117 x 185 x 40 mm

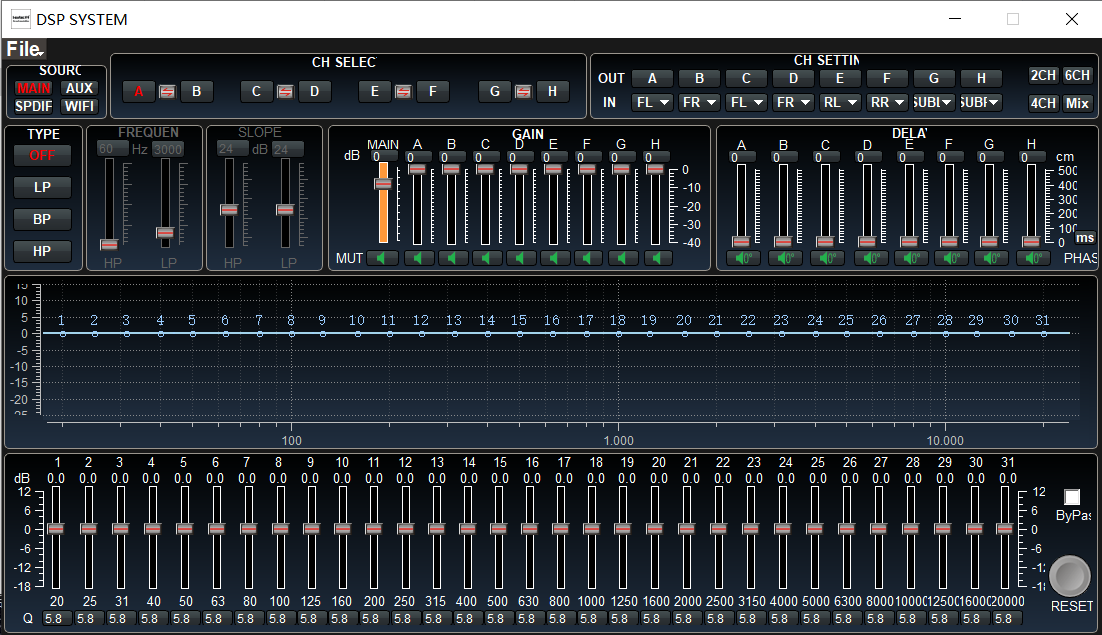

Tuning function by region design

• Each function is designed in different regions at a glance • The current channel highlight indicates that channel joint debugging is supported • Volume can be adjusted by the slider and + - key, which is simple and convenient • The crossover supports high/low pass one-key switching comparison

Frequency response

  • 20Hz - 20KHz

Inputs

  • 6 high-level signal inputs

  • 6-channel RCA signal

  • Optical fiber/ Coaxial digital signal input

  • Bluetooth signal input (sold separately)

Outputs

  • 8-channel RCA output

Sound & Tuning

  • Standard control panel

  • 31 Bands parametric EQ

  • Hi-pass / Low-pass / Bandpass Crossover

  • Time delay up to 15 ms per channel

  • Input/output frequency summing

  • Music & navigation sound mixing

Dimension

  • 117 x 185 x 40 mm
